689-ZZ Ball Bearing 9x17x5mm 689 ZZ Metal Shielded

*Image may differ from product. See technical specification for details.

689-ZZ Ball Bearing 9x17x5mm 689 ZZ Metal Shielded

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds

$1.90 CAD

Quantity:
1
Need Technical Help?
  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

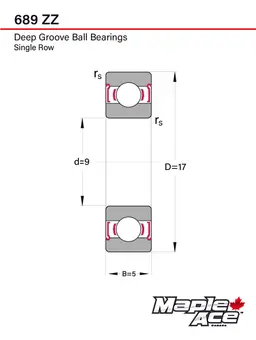

Specifications

Item689-ZZ
Bearing Type680
Bore Diameter9.00 mm
Outside Diameter17.00 mm
Width5.00 mm
Width Inner Ring5.00 mm
Width Outer Ring5.00 mm
Dynamic Load Rating Cr871 N
Static Load Rating Cor340 N
Limiting Speed43000 r/min
ClearanceNormal
Tolerance Inner Ring0 to -7 μm
Tolerance Outer Ring0 to -7 μm
Tolerance ClassesP5
Noise and VibrationZ3V3
ClosuresShield on both sides
Lubrication TypeGrease Chevron
Lubrication Temperature-40°C to +150°C
Rolling Element IndicatorBall
MaterialGcr15
Product Weight0.004 KG
