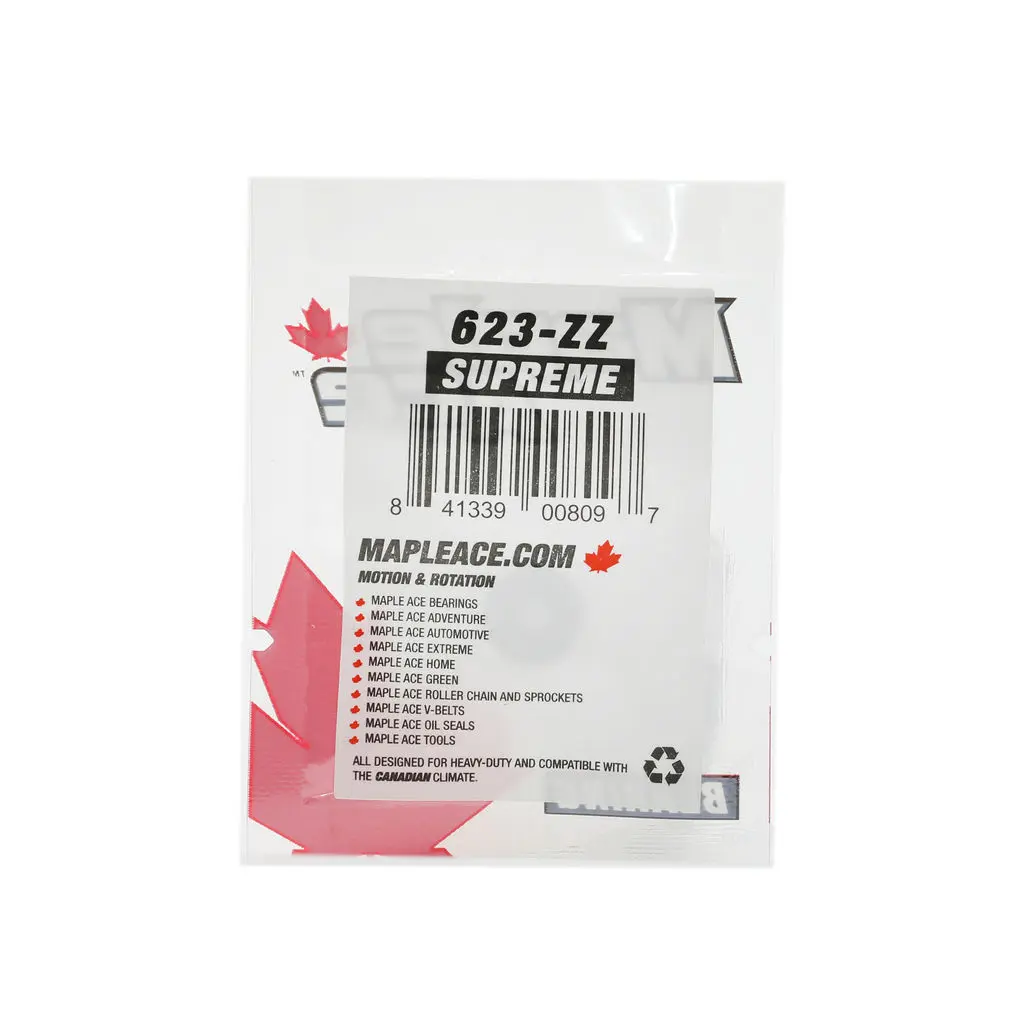

623-ZZ Ball Bearing 3x10x4mm 623 ZZ Metal Shielded

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds

$2.10 CAD

Quantity:

Need Technical Help?

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
Capable of accommodating both radial and axial loads in both directions.
Easy to mount, requiring less maintenance compared to other bearing types.
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing

Fast Shipping
Secure Payments
30 days Guarantee

Specifications

Item623-ZZ

Bearing Type620

Bore Diameter3.00 mm

Outside Diameter10.00 mm

Width4.00 mm

Width Inner Ring4.00 mm

Width Outer Ring4.00 mm

Dynamic Load Rating Cr540 N

Static Load Rating Cor180 N

Limiting Speed60000 r/min

ClearanceNormal

Tolerance Inner Ring0 to -7 μm

Tolerance Outer Ring0 to -7 μm

Tolerance ClassesP5

Noise and VibrationZ3V3

ClosuresShield on both sides

Lubrication TypeGrease Chevron

Lubrication Temperature-40°C to +150°C

Rolling Element IndicatorBall

MaterialGcr15

Product Weight0.002 KG
