*Image may differ from product. See technical specification for details.

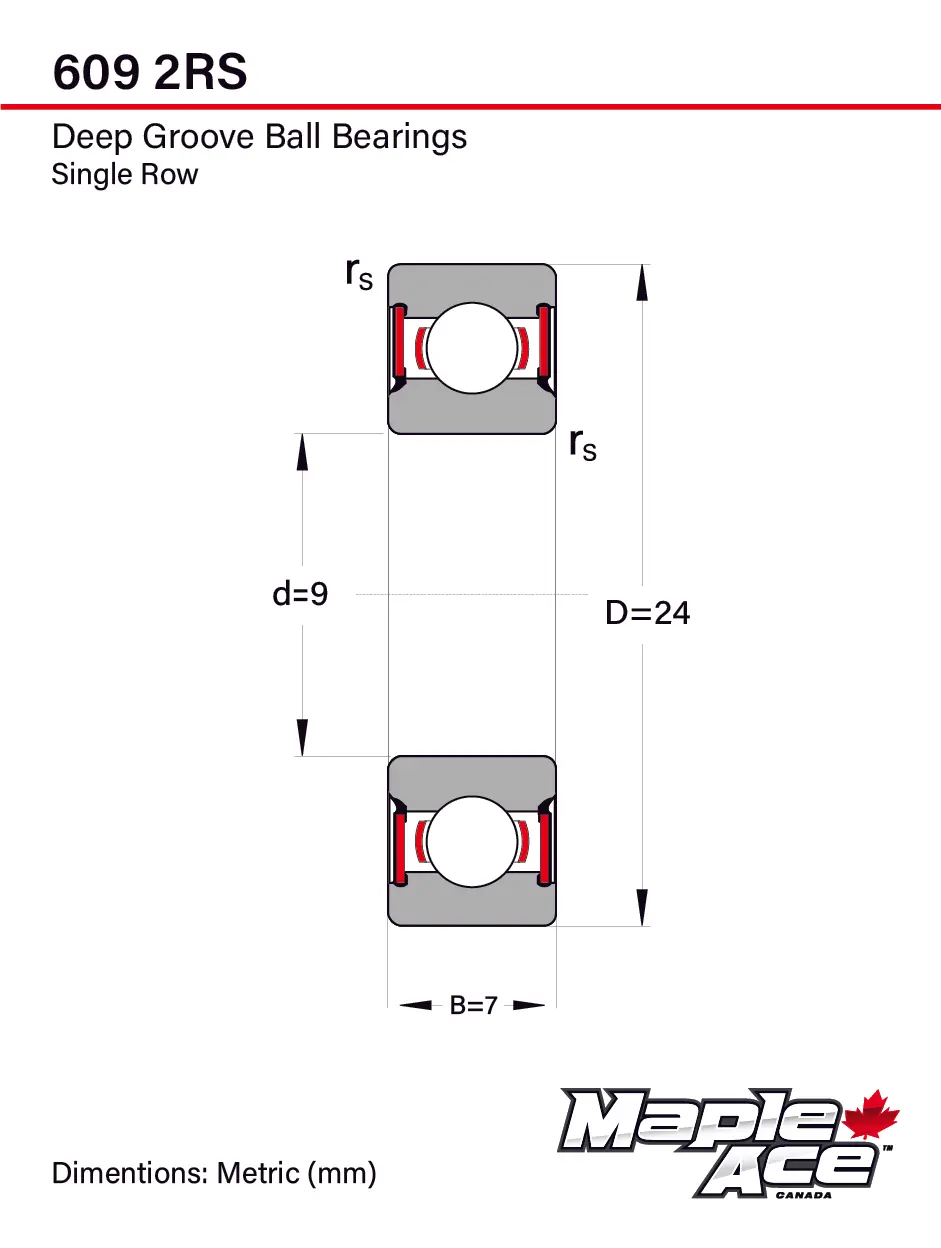

609-2RS Ball Bearing 9x24x7mm 609 2RS Rubber Sealed

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds

$2.10 CAD

Quantity:

Need Technical Help?

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
Capable of accommodating both radial and axial loads in both directions.
Easy to mount, requiring less maintenance compared to other bearing types.
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing

Fast Shipping
Secure Payments
30 days Guarantee

Specifications

Item609-2RS

Bearing Type600

Bore Diameter9.00 mm

Outside Diameter24.00 mm

Width7.00 mm

Width Inner Ring7.00 mm

Width Outer Ring7.00 mm

Dynamic Load Rating Cr3900 N

Static Load Rating Cor1660 N

Limiting Speed34000 r/min

ClearanceNormal

Tolerance Inner Ring0 to -7 μm

Tolerance Outer Ring0 to -8 μm

Tolerance ClassesP5

Noise and VibrationZ3V3

ClosuresSeal on both sides

Lubrication TypeGrease Chevron

Lubrication Temperature-40°C to +150°C

Rolling Element IndicatorBall

MaterialGcr15

Product Weight0.015 KG
